Description

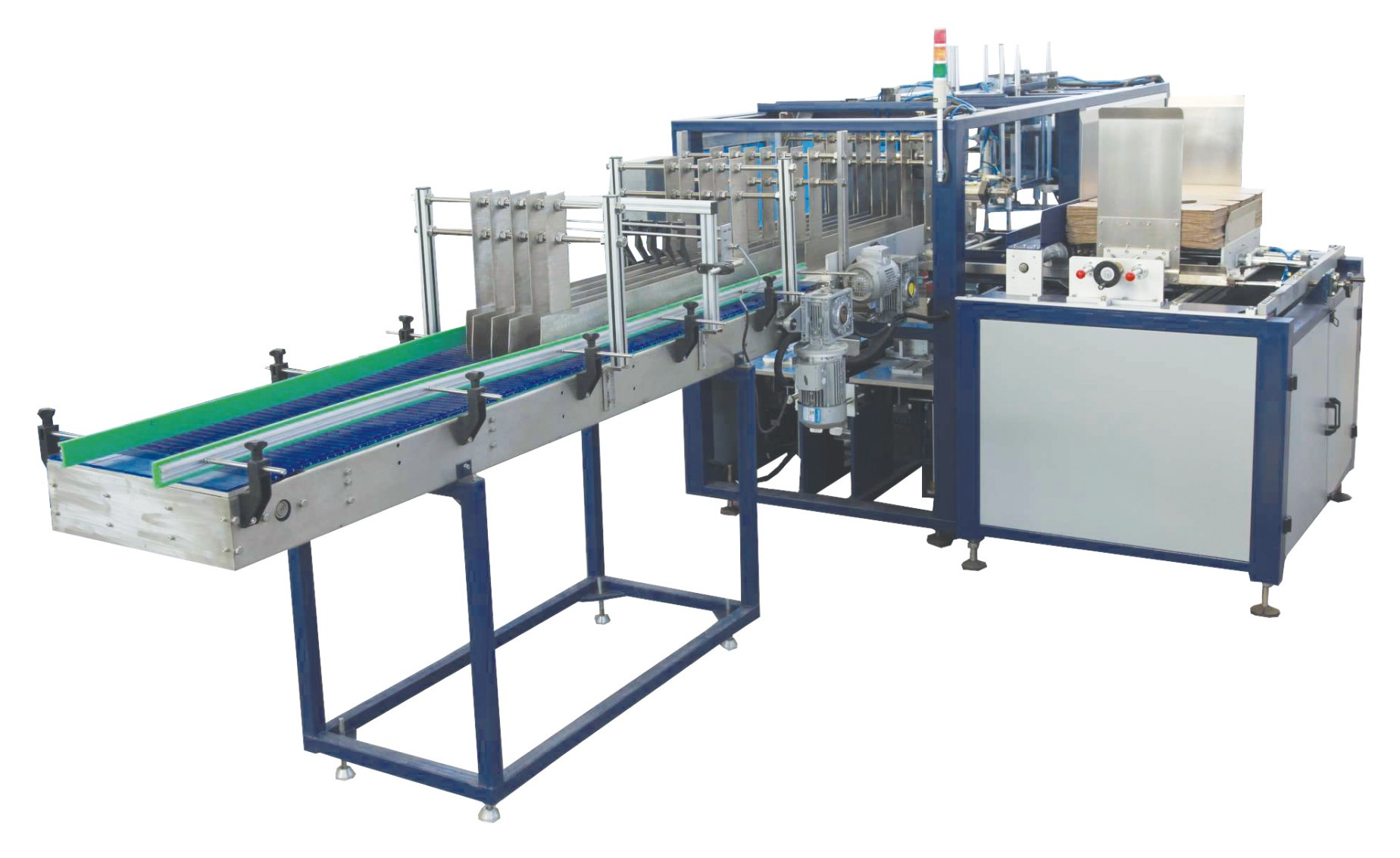

The automatic wrap around carton packing machine uses a servo motor for precise position control. The PLC system maintains overall control of the entire carton making process. A high level of automation can be achieved. Imported motor drive controls the degree of rotation via the chain. A speed regulator keeps the speed of sprocket in check.
Due to reliable control, ease of adjustment, and intelligent operation, the cartoning machine can be widely used in beverage, beer, chemistry, food, and medicine industries, serving either as a stand-alone device or being integrated into an automatic production line.

Cartoning Process

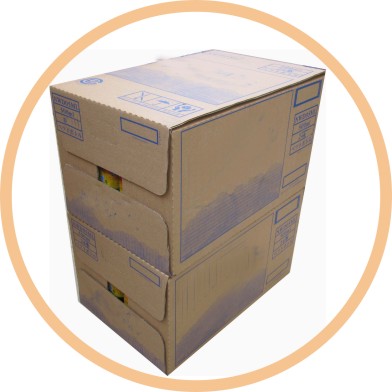

Turning incoming paperboards automatically into cartons

Sealing Method
Hot-melt adhesive

Technical Specs of Automatic Wrap Around Carton Packing Machine

Model	JND-250A
Power	AC 220V/380V--50/60HZ, 10kW
Packing speed	10-25 carton/min
Package type	Carton
Containers	Diameter: 50-108mm, :70-360mm
Carton dimensions	Length: 350-450mm, :20-330mm, :85-360mm
Setting time of hot-melt adhesives	1.5-2.5 seconds
Working pressure	0.6-0.8 MPa, 1500L/min
Overall size	6250mm×2582mm×2115mm
