Description

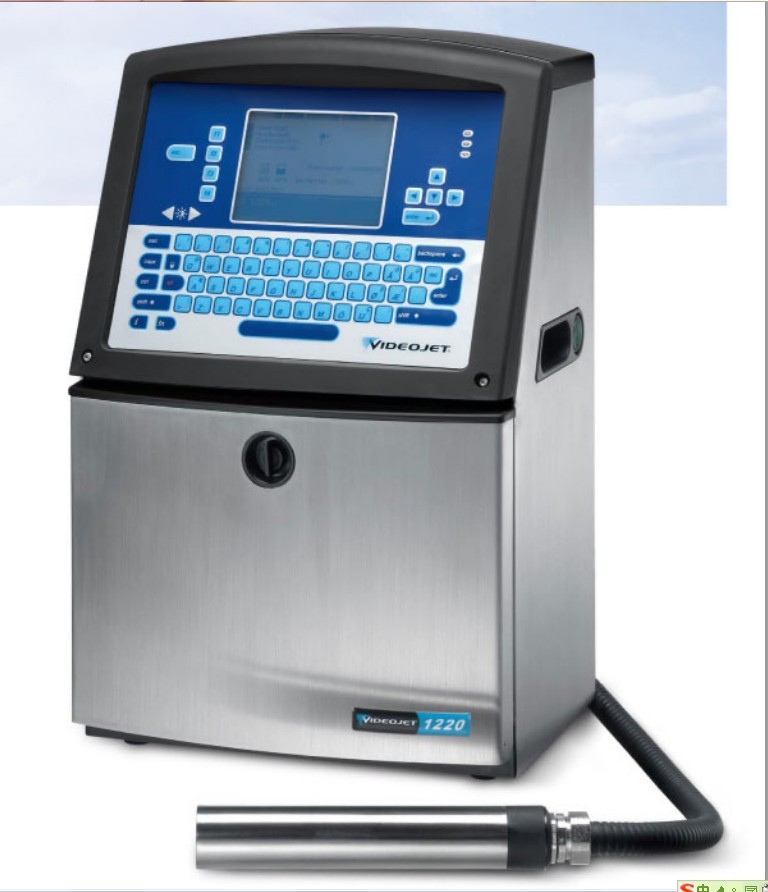

Ink jet printer is engineered to keep your line up and running longer, which features simpler operation, less maintenance, superior print quality.

Advanced Capabilities
Up to 3 lines of code with speeds up to 533 ft./min (162 m/min.)
Standard USB with logo and memory back-up

Features
Simple to maintain
9,000-hour core life
No mess, no waste, no mistake fluid cartridge delivery system

Superior environmental protection
IP55 washdown protection standard

Line Speed
Can print 1 to 3 lines of print at speeds of up to 533 ft./min.(162.5 m/min.)

Font Matrix Configuration
Single-line: 5x5, 5x7, 7x9, 11x16, 17x24
Twin-line: 5x5, 5x7, 7x9
Tri-line: 5x5, 5x7

Nominal Character Height
From 0.079" (2 mm) to 0.279" (8.5 mm), depending on the font
Throw Distance
Optimal: 0.472" (12 mm) Range: 0.197" (5 mm) to 0.591" (15 mm)

Keyboard
Membrane keyboard with tactile feedback, including 72 numeric, alphabetic, and special function keys. PC-style layout to approximate international PC convention

Display
320x240 Bright blue backlit 5.7" LCD display. WYSIWYG onscreen message editing

Custom Logo/Graphics
Can be created by individual user on printer or PC with optional Videojet Logo Creator software

Character Sets
American, Arabic, Bulgarian, Chinese, East European, European, Greek, Hebrew, Hungarian, Italian, Japanese, Japanese/Kanji, Japanese/ Katakana, Korean, Russian, Simplified Chinese, Scandinavian, Thai, Traditional Chinese, Turkish, Vietnamese

Languages and Interface Options
English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Thai, Traditional Chinese, Turkish and Vietnamese

Data Interface
Standard USB with logo and memory backup features

Message Storage
100 complex messages. Unlimited storage using USB

Console Dimensions
Stainless steel 21.3" (541 mm) high 13.6" (345 mm) wide 11.2" (285 mm) deep

Heated Printhead
Diameter: 1.63" (41.3 mm) Length: 9.47" (240.5 mm)

Printhead Umbilical
Ultra flexible Length: 6.56’ (2 m) Diameter: 0.91" (23 mm) Bend radius: 3.00" (76.2 mm)

Fluids Containers
Ink Smart Cartridge 0.793 qt. (750 ml)
Make-up Smart Cartridge 0.793 qt. (750 ml)

Temperature/Humidity Range
32°F to 122°F (0°C to 50°C) 0% to 90% RH non-condensing

Power supply
Nominal supply power 100-120 / 200-240 VAC at 50/60 Hz., 120 W

Approximate Weight
Unpacked and dry: 39.68 lbs. (18 kg)

Options
Positive air pump
Dry air kit for high humidity (requires plant air)
Product detect, relay, RS 485 expansion board
RS232, encoder, beacon expansion board 9.8-foot (3 m) umbilical
Food grade version
Wide range of accessories
