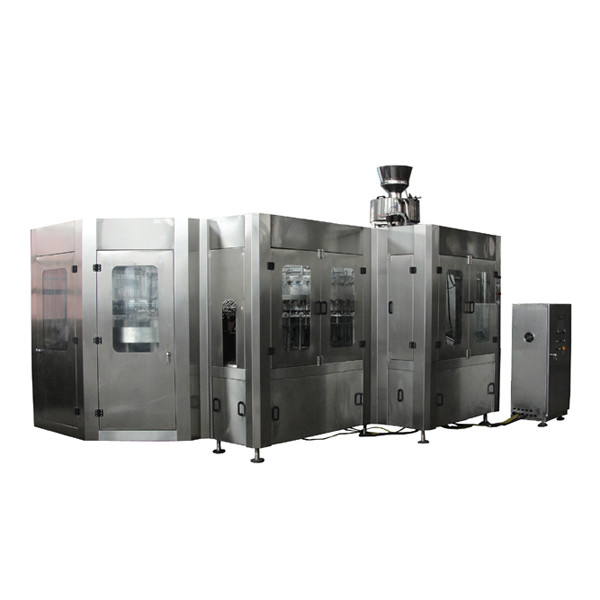

Isobaric Filling Machine,Isobaric Filler for Carbonated Drink

Application

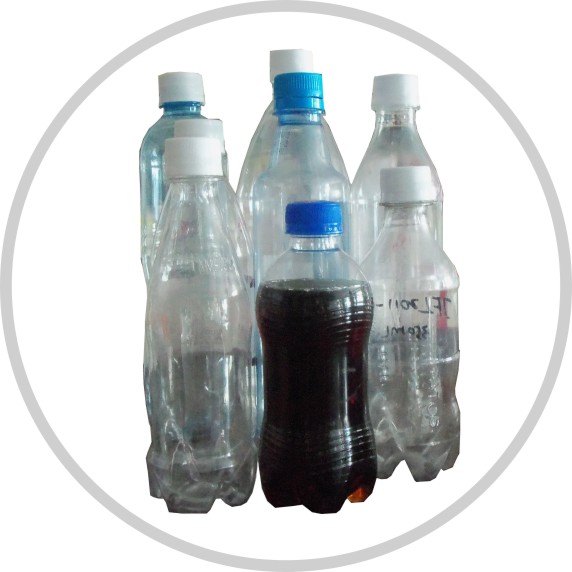

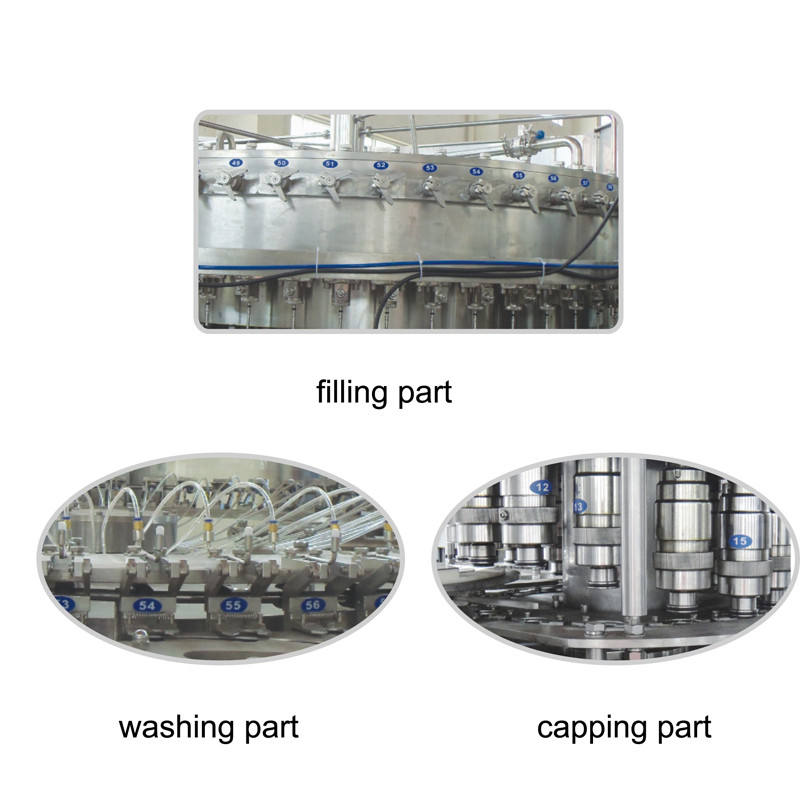

Integrated the functions of bottle washer, bottle filler and bottle capper, this isobaric filling machinery is suitable for filling all kinds of carbonated drink into PET or Glass bottles.
Besides beverage filling machinery, J&D also provides drinking water filling machine and oil filling machinery etc. to satisfy your different demands.

Features of Isobaric Filler for Carbonated Drink
1. J&D carbonated drink machine features with scientific and reasonable design, beautiful appearance, complete function, convenient maintenance, and high automation.
2. Suitable for different types of bottles:
The bottle-neck clamping device and suspending bottle design enable a stable filling process and also help avoiding malfunctions caused by differences of thickness and height of the bottle.
3. Advanced technology from Germany and Italy is adopted:
(1) Isobaric filling technology enables a precise control of liquid amount and quick filling;
(2) Fully enclosed type of beverage-holding tank and CIP interface are equipped in our carbonated drink machine.
4. Swirl wind-power cap-managing device helps avoiding damaging the cap surface. And caps will be fed automatically when there is shortage of caps.
5. Magnetic torque cap screwing device enables a free adjusting of cap-screwing-power, as a result avoided damages to bottle caps.
6. Human-machine interface touch-screen is adopted in this filling equipment:
(1) The liquid level in the tank can be controlled automatically.
(2) The filling and capping will stop automatically when there is not bottle.
7. All parts that have direct contact with the beverages are made of high quality stainless steel.
8. And the main electrical components are from famous international companies.

Technical Parameters of Isobaric Filling Machine

1. 2000-6000BPH Isobaric Filling Machine

Model	JND 14-12-5D	JND 16-12-6D		JND 18-18-6D
Production Capacity (BPH)	2,000-3,000	3,000-4,000		4,000-6,000
Filling Pressure (Mpa)	≤0.4
Applicable Bottle Type	(Bottle Diameter)Φ50-Φ100mm ()150-320mm (Volume)330-2,000ml
Applicable Cap Shape (Mpa)	Plastic Screw Cap
Gas Source Pressure (Mpa)	0.6
Gas Consumption (m3/min)	0.2		0.25	0.3
Total Power (kW)	4.6		4.8	5.03
Total Weight (kg)	2500		3500	4200
Dimension (L×W×H)(mm)	2350×1700×2030		2400×1850×2030	2830×2030×2030

2. 8000-15000BPH Isobaric Filling Machine

Model	JND 24-24-8D	JND 32-32-8D	JND 40-40-10D
Production Capacity (BPH)	8,000-10,000	1,000-12,500	12,500-15,000
Filling Pressure (Mpa)	≤0.4
Applicable Bottle Type	(Bottle Diameter)Φ50-Φ100mm ()150-320mm (Volume)330-2000ml
Applicable Cap Shape (Mpa)	Plastic Screw Cap
Gas Source Pressure (Mpa)	0.6
Gas Consumption (m3/min)	0.4	0.5	0.55
Total Power (kW)	6.4	8.07	9.56
Total Weight (kg)	5800	7000	9000
Dimension (L×W×H)(mm)	3220×2400×2600	3450×2510×2710	3800×2800×2710

3. 16000-32000BPH Isobaric Filling Machine

Model	JND 50-50-12D	JND 60-60-15D	JND 80-80-20D
Production Capacity (BPH)	16,000-20,000	20,000-24,000	26,000-32,000
Filling Pressure (Mpa)	≤0.4
Applicable Bottle Type	(Bottle Diameter)Φ50-Φ100mm ()150-320mm (Volume)330-2000ml
Applicable Cap Shape (Mpa)	Plastic Screw Cap
Gas Source Pressure (Mpa)	0.6
Gas Consumption (m3/min)	0.6	0.7	0.8
Total Power (kW)	11.18	15	18
Total Weight (kg)	10500	12800	15000
Dimension (L×W×H)(mm)	4510×3400×2750	6500×5500×2750	7680×6640×2850
