Description

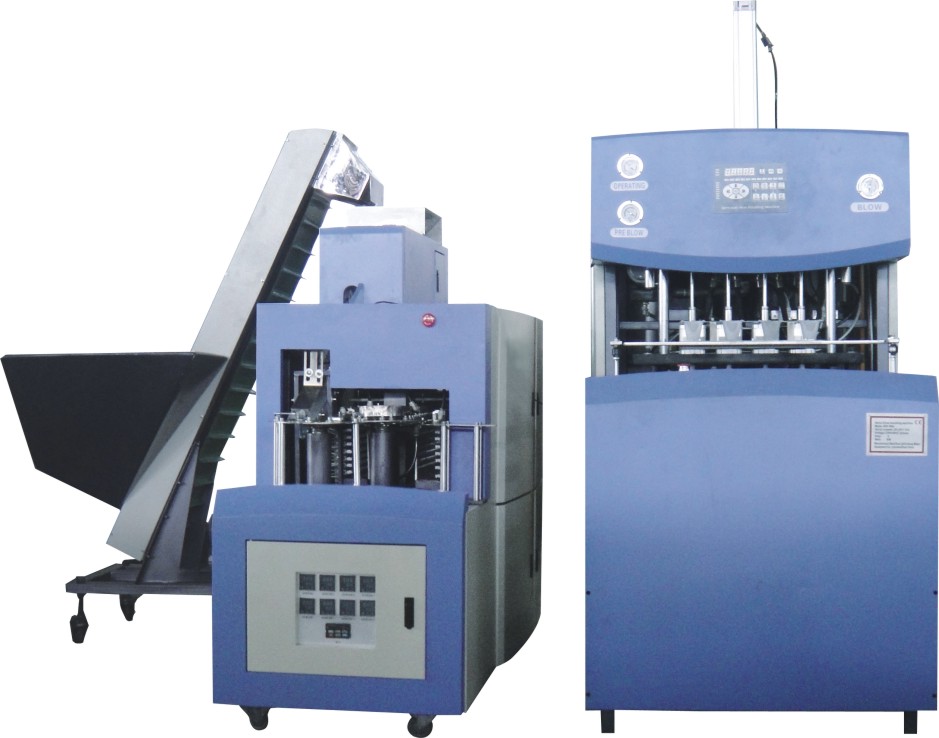

The JND series semi-auto stretch blow molding machine is a semi-automatic unit built strictly to CE standards. By using microcomputer control system, operators are able to optimize molding parameters for high accuracy and stable quality.
This semi -auto stretch bottle blower can be operated safely and effortlessly by only one person even without special training.

Application

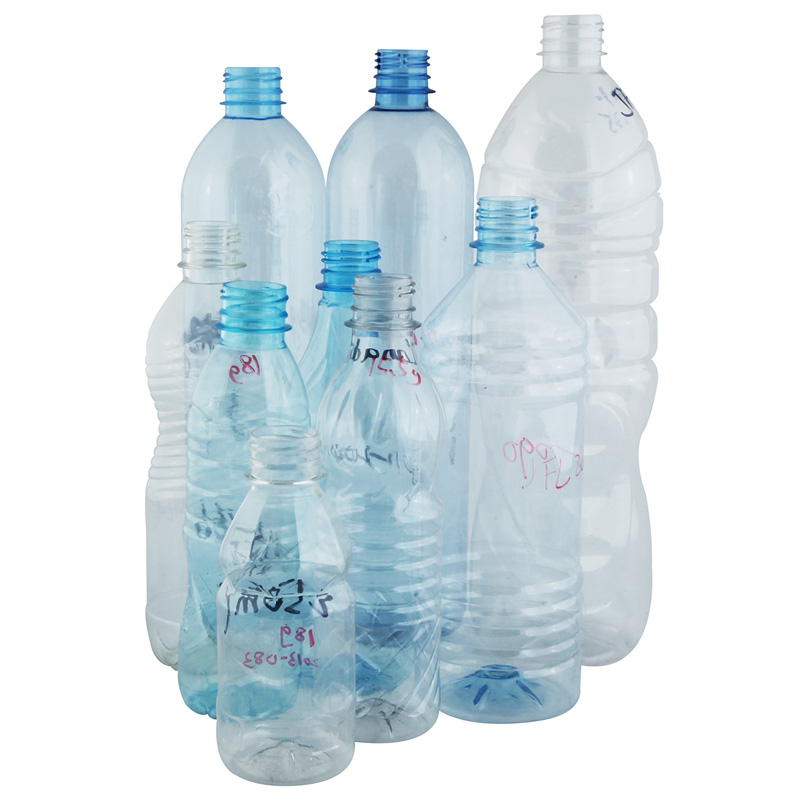

Perhaps the single most important product made by stretch blow molding is the PET bottle for carbonated soft drinks, though the process is also widely employed to make mineral water bottles, cosmetics bottles, and hot fill containers, especially oil bottles with handles.

Technical Specifications of Semi-auto Stretch Blow Molding Machine

General information	JND-SA4
Clamping force(KN)	300
Number of mold cavities	4
Theoretical output(BPH)	2000(0.5L)
Mould opening stroke(mm)	380
Max. Mould thickness(mm)	190
Space between connecting rods (mm)	670×500
Electrical system
Voltage standard	380V/3ph/50hz or special order
Total power(kW)	18
Container
Max. Container volume(L)	0.1-2.5(4 cav)
Max. Container diameter(mm)	110
Max. Container (mm)	360

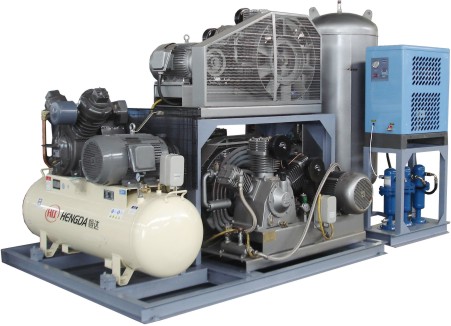

Auxiliary system of Semi-auto Stretch Blow Molding Machine
Low air compressor (Bar)	8-10
High air compressor (Bar)	30
Dimension (mm)
Blow molding machine	1900×880×1800
Heater	1900×660×1600
Weight	1300KG
