Introduction

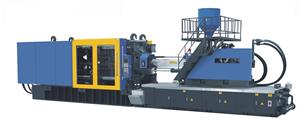

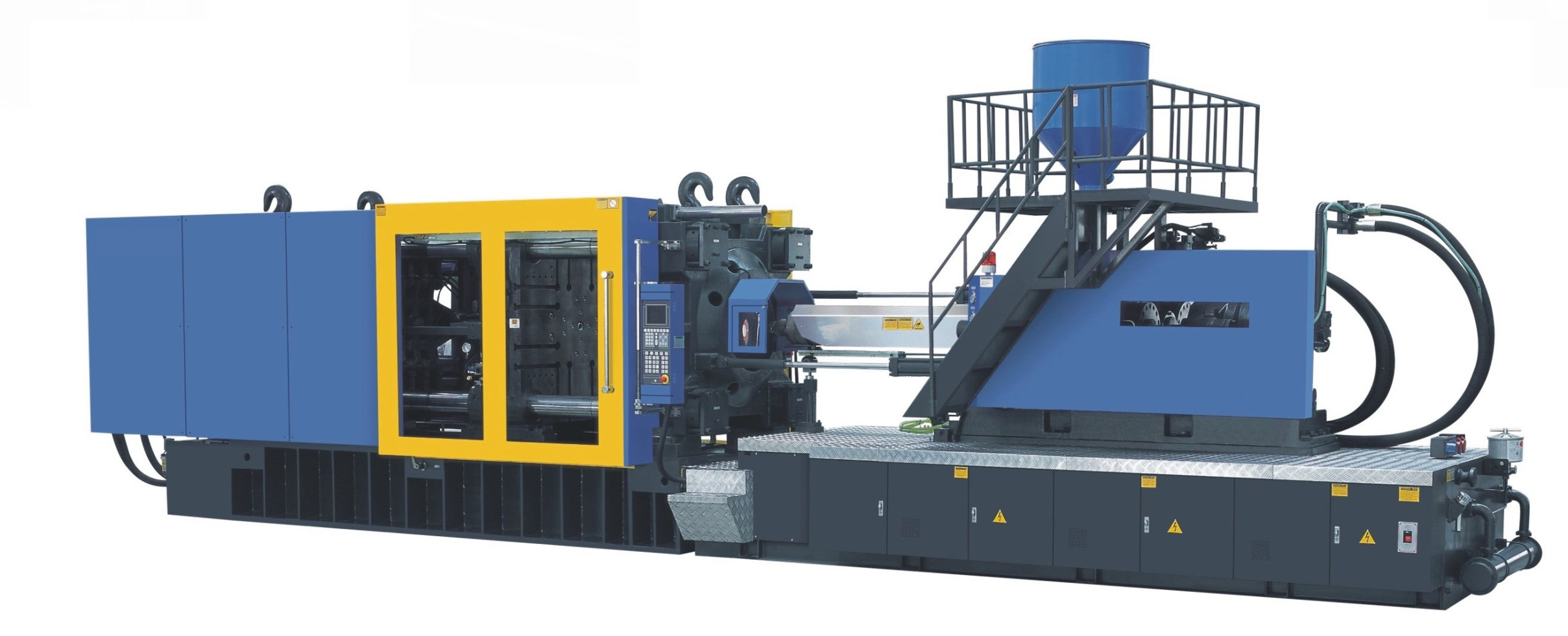

Plastic injection machines, also called plastic injection molding machines, or plastic injection moulding machines, is primarily used for manufacturing plastic products.

Features
1. Minimized aldehyde content in screw type injection system.
2. Advanced plasticizing technology is adopted.
3. Higher production efficiency for our improvement on injection molding machines.

Technical Standards of Plastic Injection Machine

Model	JND1680	JND2280	JND2680	JND3280	JND3980
Injection Unit
Screw Diameter (mm)	50	60	70	75	80
Screw L/D Ratio (L/D)	25	25	25	25	25
Shot Volume (Theoretical) (cm3)	491	780	1100	1502	1689
Injection Weight (PET) (g)	520	826	1166	1590	1788
Injection Rate (g/s)	175	273	380	350	446
Plasticizing Capacity (g/446s)	30	49	60	71	70
Injection Pressure (Mpa)	128	147	147	146	152
Screw Speed (rpm)	0-150	0-180	0-190	0-160	0-165
Clamping Unit of Plastic Injection Molding Machinery
Clamp Force (kn)	1680	2280	2680	3280	3980
Movable Mould-plate Stroke (mm)	430	480	550	670	700
Space between Tie Bars (mm)	460×460	510×510	570×570	660×660	720×720
Max. Mold (mm)	480	550	600	680	800
Min. Mold (mm)	180	200	230	240	280
Ejector Stroke (mm)	120	140	150	160	160
Ejector Force (kN)	40	65	65	65	110
Ejector Number (Piece)	5	9	9	13	13
Others of Plastic Injection Machine
Max. Pump Pressure (Mpa)	16	16	16	16	16
Pump Motor Power (kW)	15	22	30	37	37
Heater Power (kW)	13	16.5	21.5	23.8	24.8
Machine Dimension (L×W×H) (m)	5.0×1.4×2.1	6.0×1.4×3.2	6.1×1.5×2.2	6.9×1.7×2.5	7.1×1.9×2.5
Machine Weight s(t)	5.4	6.9	8	12	15.7
Hopper Capacity (L)	25	50	50	50	50
Oil Tank Capacity (L)	250	320	580	730	750

For more detailed information on mold size, applicable rubbers, finished product dimension and weight, etc., or more information about our other packaging equipment, please contact us.
