Application

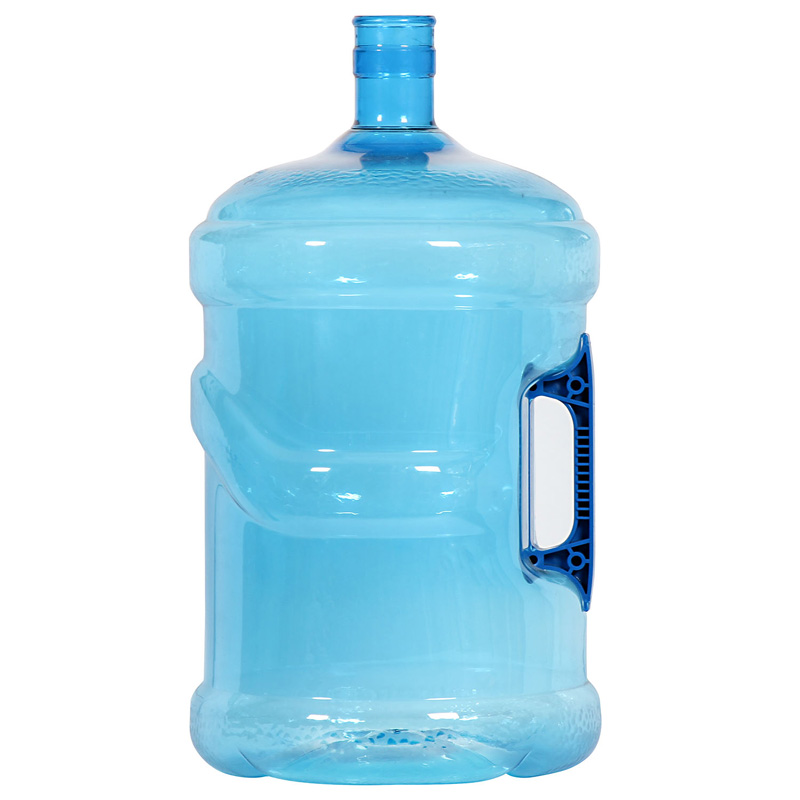

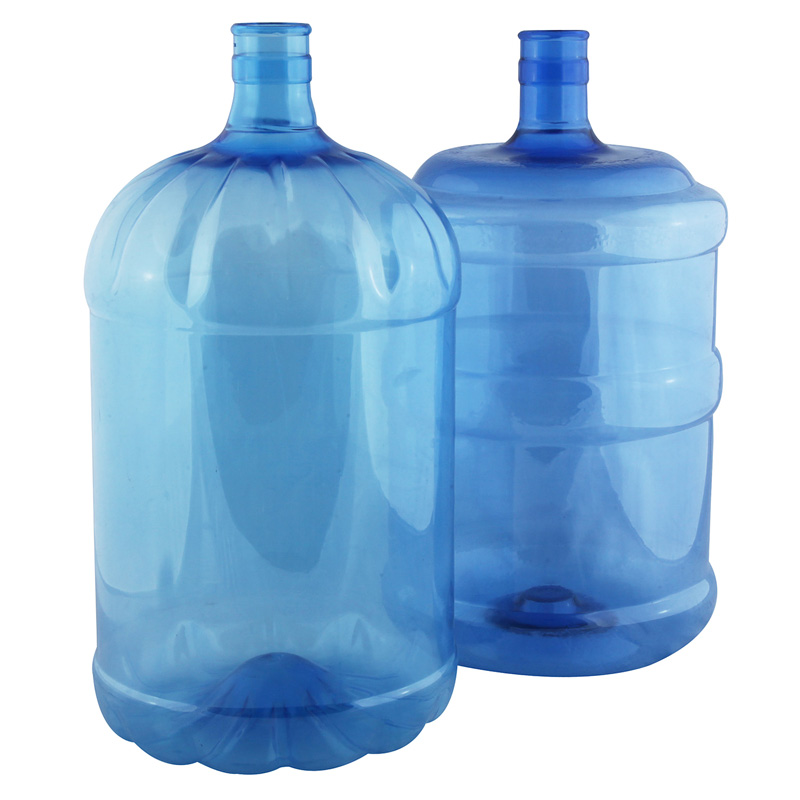

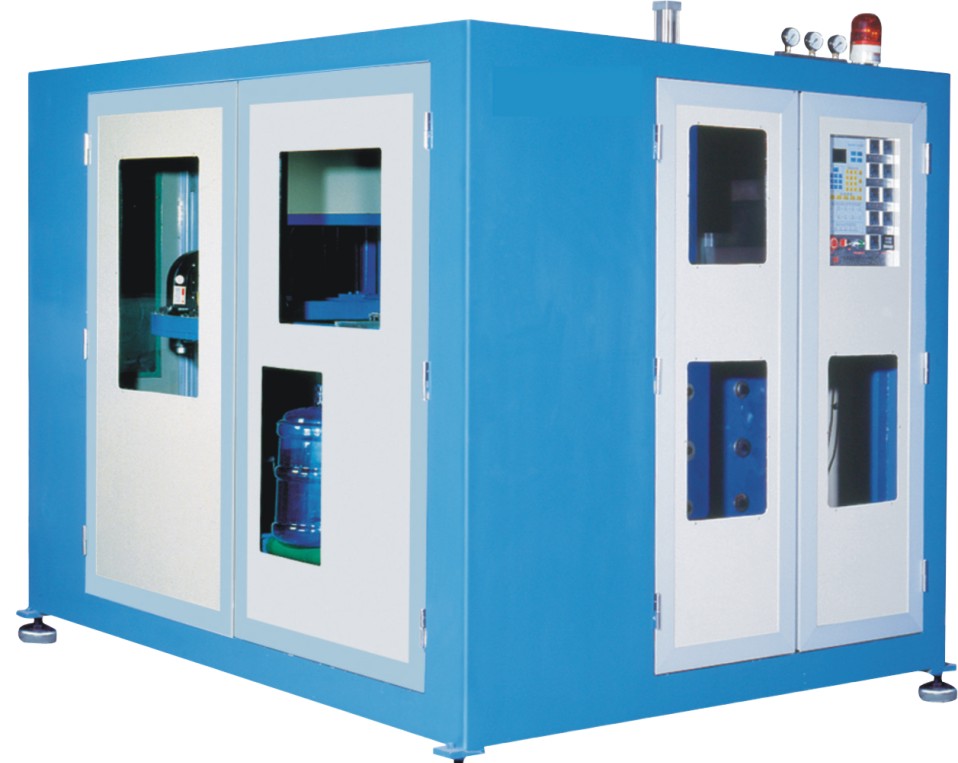

JND-120 bottle blow molding machines can be used for producing 3-6 gallon PET/PC bottles, which can can be connected to filling machines and start inline filling.

Features
1. This Automatic blowing machine is controlled by micro computers: fully automatic from preform conveying to bottle discharging.
2. By connecting the conveyor belt with the blow molding machine, we can realize auto transporting of bottles.
3. Our bottle molding machines can also be connected to filling machines and start inline filling.

Technical Parameters of Auto Bottle Blow Molding Machine

General Information	JND-120
Clamping Force	34T
Clamping Stroke	330mm
Max. Stretching Stroke	550mm
Bottom Moving Stroke	70mm
Number of Cavities	1 Cavity
Theoretical Output	120BPH
Max. Mould Thickness	400mm
Space Between Tie Bars	520×600mm
Electrical System of Auto Bottle Blow Molding Machine
Voltage Standard	AC 380V/50HZ
Number of Heating Zone	2 Sections
Total Power(Full Loaded)	15kw
Container
Max. Container Volume	25L
Neck Diameter Range	65mm
Max. Container Diameter	400mm
Max. Container	550mm

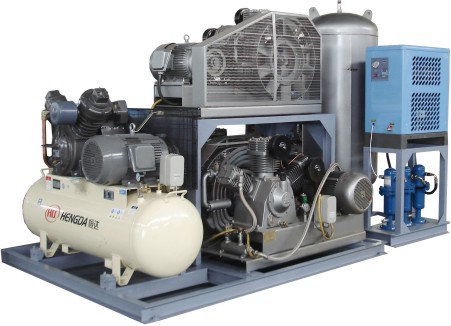

Auxiliary System of Automatic Blowing Machine
Low Air compressor	8-10Bar
High Air compressor	30Bar
Air Dryer	2.0/30
Dimension & Weight (L×W×H)
Blow molding machine	2600×1900×1950mm
Preform Auto loader	2520×680×1550mm
Net Weight	5.2 ton
