Description

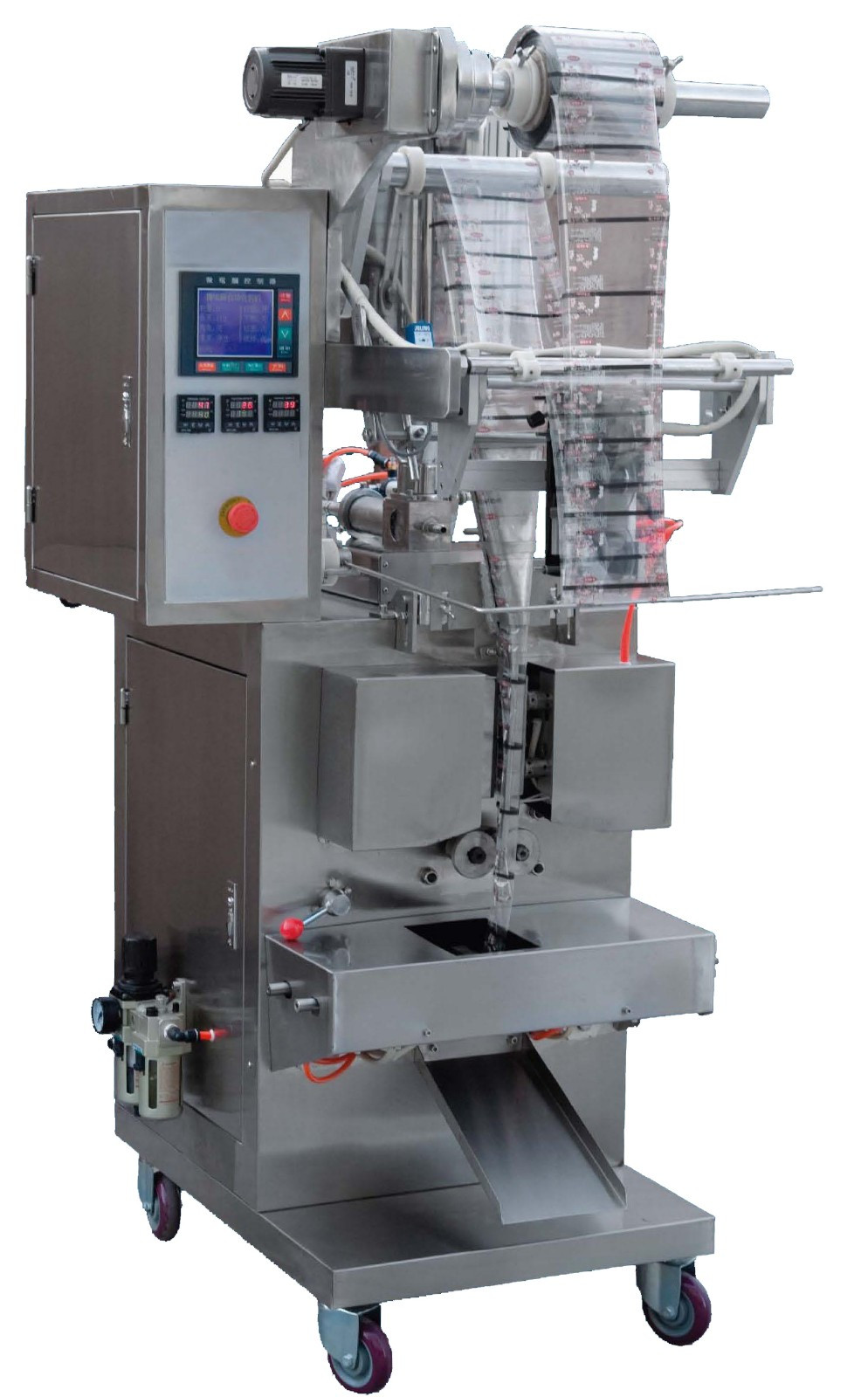

The JND-S series vertical paste form fill seal machine uses a computer control system to achieve a high level of automation. With this advanced computer control, different operations are easy to on the paste packaging equipment, such as bag forming, counting, filling, sealing, cutting, batch number printing, and making the tear notch, etc.
Fixed displacement plunger pump comes with variable speed drive, and is used to handle viscous liquid such as shampoo which tends to drip or form thin threads during dripping. If you are looking for an end-of-line packaging solution, JND is the right manufacturer to call.

Sealing Method

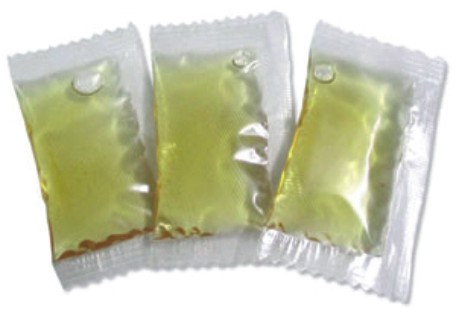

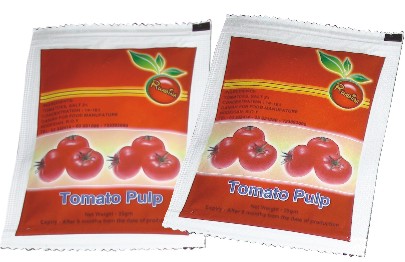

The bag can be sealed on three or four sides, or to form a pillow pack.

Packaging material
Paper/PE, PET/Aluminum Foil/PE, Nylon/PE, Tea Bag Paper & etc.

Options
Ribbon hot stamping machine (with choices of colors and ink rolls).

Technical Specs of Semi-liquid Paste Packing Machine

Model	JND-S100	JND-S300	JND-S500
Bag length (mm)	50-150	50-300	80-300
Bag (mm)	25-120	70-190	90-190
Packing film (mm)	60-240	160-380	200-380
Capacity (bag/min)	30-60	30-60	30-60
Volume (ml)	5-100	50-500	200-1000
Power (kW)	1.6	1.6	1.6
Air pressure (Mpa)	0.65	0.65	0.65
Air consumption (L/MIN)	150	180	200
Size (l×w×h) (mm)	760×1380×1700	900×1800×2040	900×2000×2040
Weight (Kg)	300	480	500
