Description

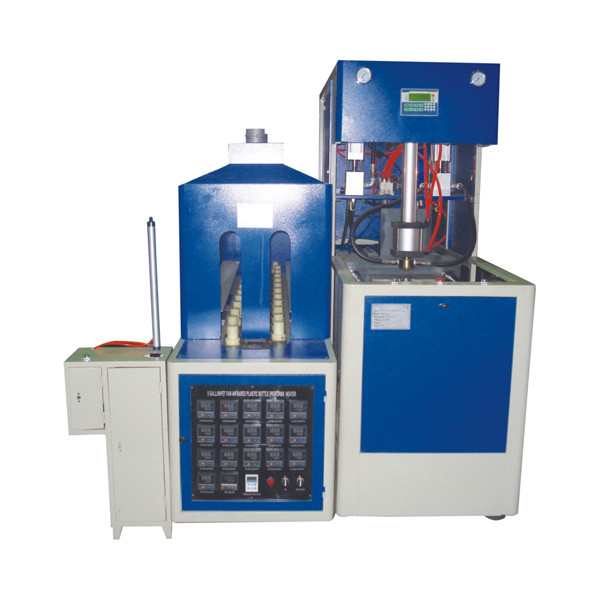

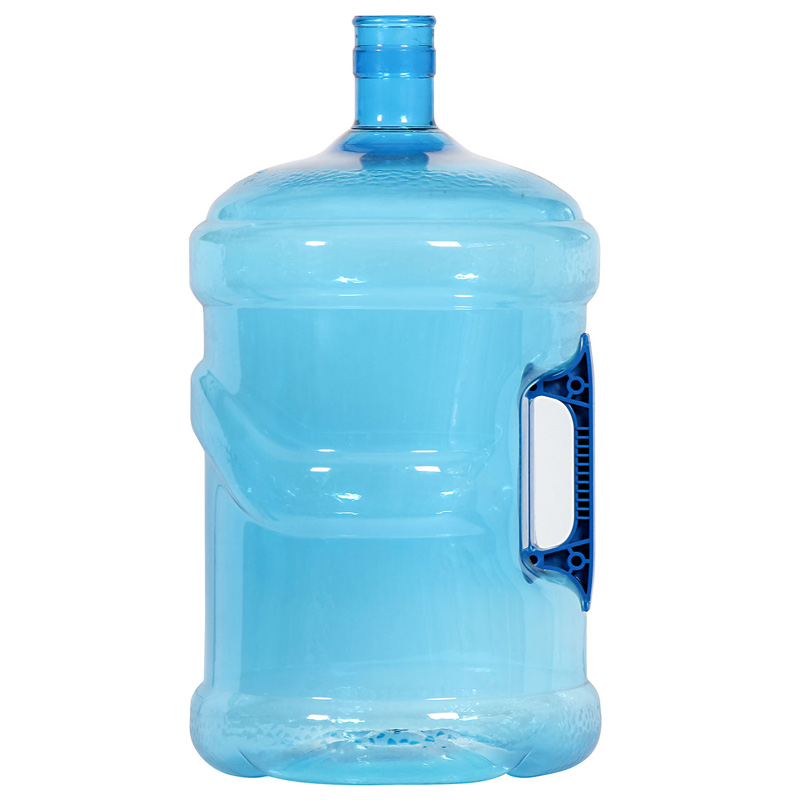

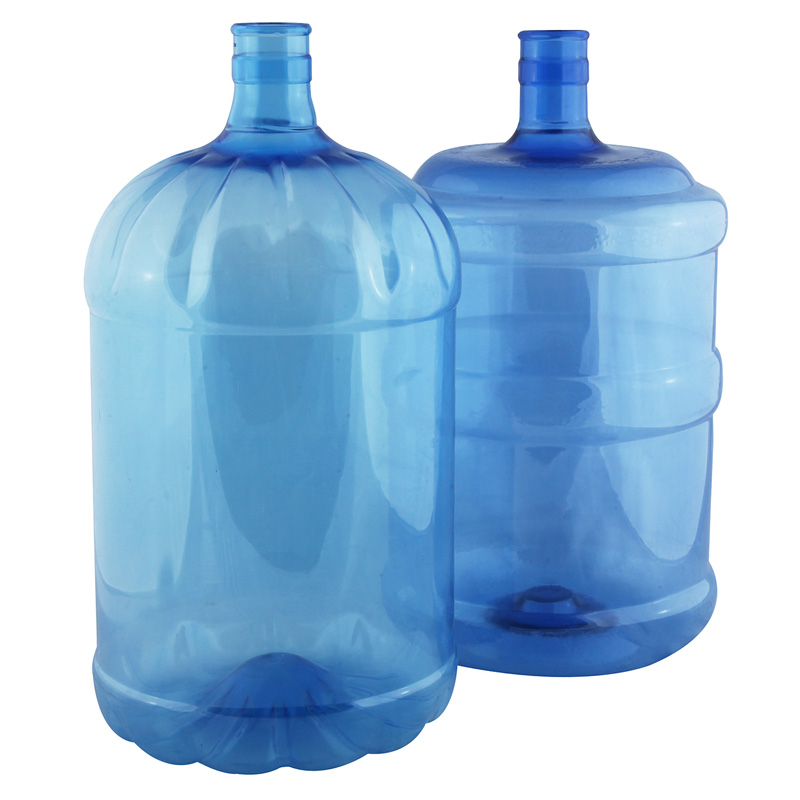

JND-90 semi-auto bottle blow molding machine is especially designed for producing 5 gallon bottles and 25L wide mouth jars, which max. output is 90 BPH for 5-gallon bottles.

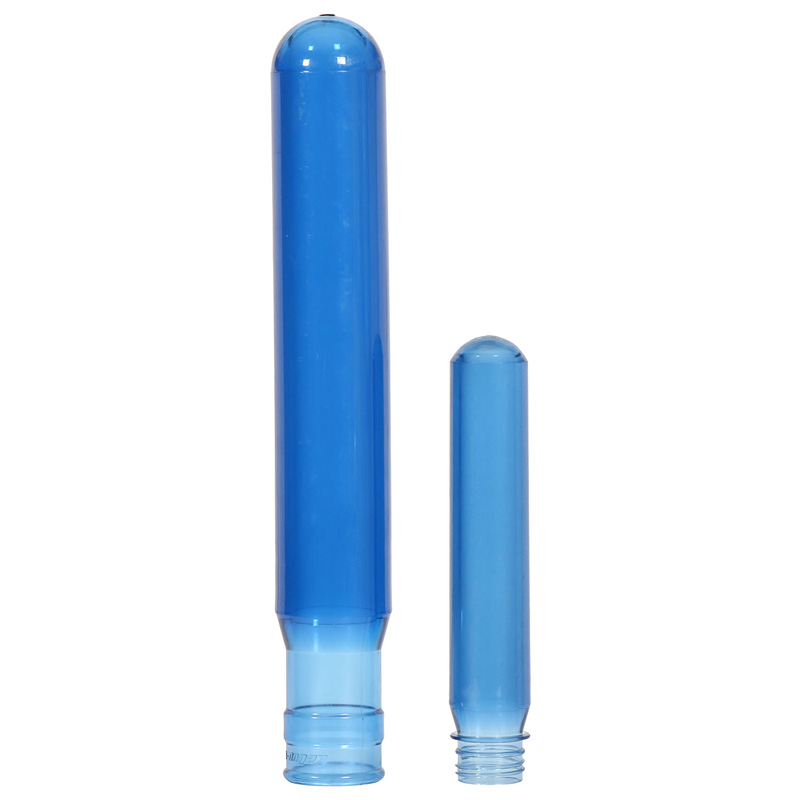

Easy operation for its high automation: only one operator is needed and the operator only need to put heated preform into the blow mold and press the switch; the following processes will be automatically completed.

Main Components
1. main units
2. rotary infrared heater: the infrared heater with high penetrative force can heat the inside and outside of preform simultaneously, which help giving our bottle blow machines high shaping ability.

Technical Standards of Semi-auto Bottle Blowing Molding Machine

General Information	JND-90
Clamping Force	30T
Clamping Stroke	330mm
Max. Stretching Stroke	450mm
Bottom Moving Stroke	--
Number of Cavities	1 Cavity
Theoretical Output	90BPH
Max. Mould Thickness	380mm
Space Between Tie Bars	480×550mm
Electrical System of Semi-auto Blowing Machine
Voltage Standard	AC 380V/50HZ
Number of Heating Zone	2 Sections
Total Power(Full Loaded)	15kW
Container
Max. Container Volume	25L
Neck Diameter Range	65mm
Max. Container Diameter	330mm
Max. Container	550mm
Auxiliary System of Semi-auto Bottle Blowing Molding Machine

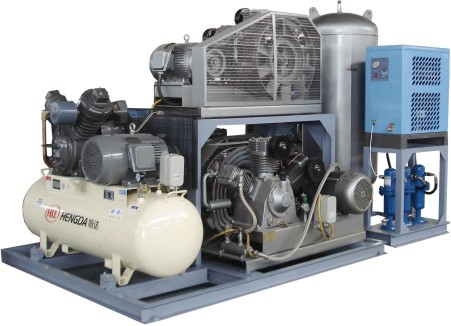

Low Air compressor	8-10Bar
High Air compressor	30Bar
Air Dryer	2.0/30
Dimension & Weight (L×W×H)
Blow molding machine	1550×820×2000mm
Preform Auto loader	--
Net Weight	1.4Ton
