Description
The pallet wrapper is suitable for wrapping both stable and unstable load, such as the container, spare parts, and bulk cargo. The stretch wrapping machine is widely seen in glassware, hardware, electronics, paper, ceramics, chemicals, food, beverage, building materials and other industries.

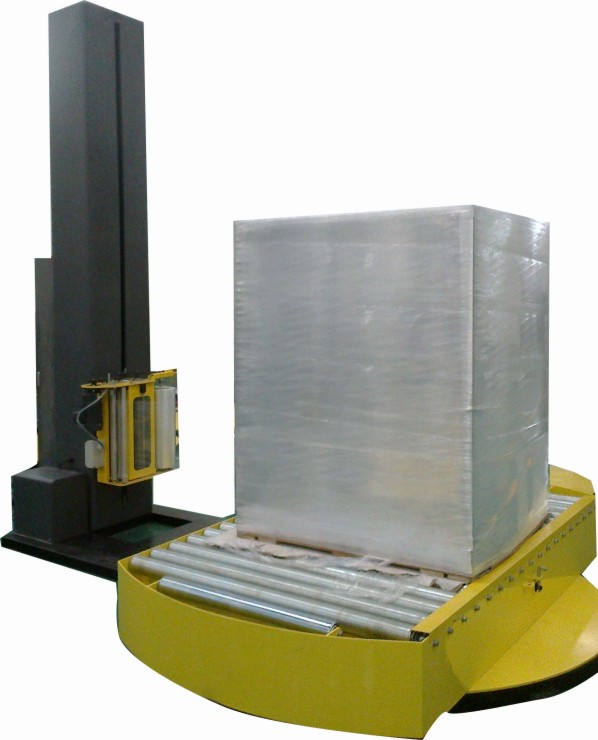

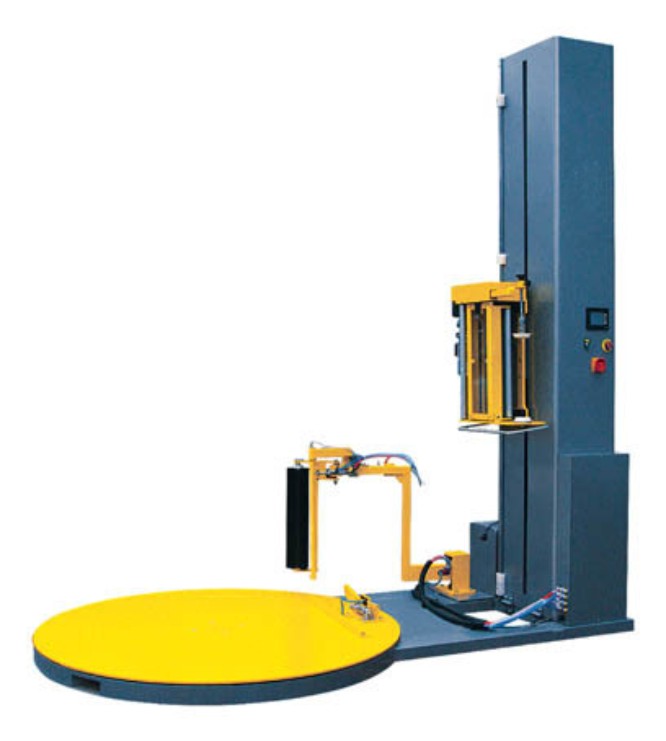

Shown on this page is a turntable pallet wrapper, one of the three kinds of stretch wrappers. This pallet wrapping machine is an ideal choice when it comes to improving packaging efficiency and safety as well as reducing loss during product transit. A remote control is available with the pallet wrapper for safe wrapping operation from a distance.
Technical Specifications of Pallet Wrapper

Wrap Size (L × W)	(500-1200) × (500-1200)mm
Wrap (mm)	L type: 1800mm H type: 2400mm
Wrapping Efficiency	20-50 Pallets/Hour
Turntable Speed	0-12 rpm Adjustable turntable speed
Turntable	78mm
Turntable Diameter	1650mm
Turntable weight capacity (max.)	2000kg
Film Carriage	Power pre-Stretch system up to 350% with adjustable speed
Control system	PLC
Cut & clamp unit	Pneumatic Control; Automatic Film Attaching, Cutting And Wiping
Pneumatic System	0.6-1.0 Mpa
Total weight (kg)	900Kg
Machine Dimension	L Type:2745×1650×2530 H Type: 2745×1650×3310(mm)
Power	Turntable:0.75kW, Film carriage: 0.35kW Lift system: 0.37kW/AC220V
Voltage	Single Phase 220V/50HZ/20A
