Description

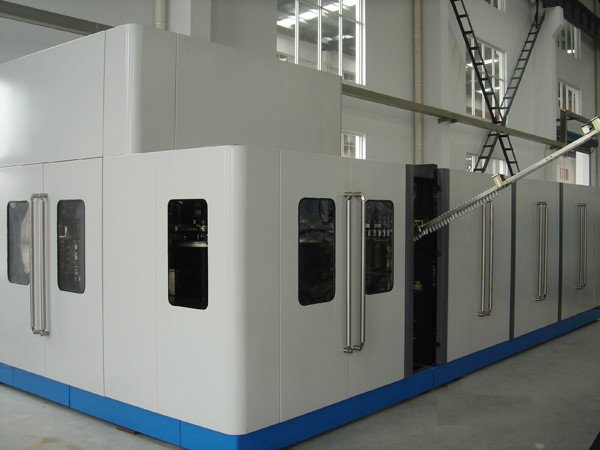

The PET bottle blow molding machine is made with PLC controls. With an output of 12,000 bottles per hour, it suitable for polyethylene terephthalate bottles. PET bottle making machine has passed the high quality CE standards, which is environmentally friendly and it uses well known brand parts like SIEMENS.

Parameters of the PET Bottle Blow Molding Machine (12000 BPH)

Production Data	Unit	RBM-08T
Mould cavities	N	8
Max. body diameter	mm	90
Max.	mm	320
Max. diameter	mm	30
Max. preform	mm	145
Max. capacity	ml	2000
Nominal output for 0,5 L , bottle	pcs/h	12000
Rate of finished product	%	≥99.5
Dimensions
Length××	mm	3000×2500×3300
Weight	Kg	13800
Voltage	V	380
Frequency	Hz	50
Medium power	kW	60
