Description

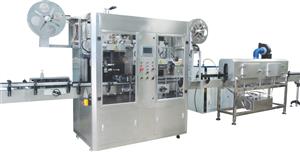

The double head plastic bottle shrink labeling machine is suitable to use in several types of bottles like round bottle, square bottle, flat bottle, curved bottle, cup-shaped and many others. It adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer. The plastic bottle shrink labeling machine has a positioning module to ensure casting label accurate, rapid and stable; in order to meet the needs of national and international markets, our company has researched and developed double head mechanism to meet the requirements of casting label for bottle mouth and bottle body.
The plastic bottle shrink label machine not only reduces a trapping label machine use but also saves cost for customers. It reduces the length of conveying line or avoids the secondary transportation, increasing the production efficiency and the space areas for equipment. The plastic bottle shrink labeling machine reduces the stumbles in the process and increases the quality of product.

Parameters of Double Head Plastic Bottle Shrink Labeling Machine

Model	JND-220
Production Capacity (BPH)	100BPMIN
Input Voltage	AC380/220V
Input Power (kW)	3.0
Applicable Diameter of Bottle Body	Φ 28 mm - Φ 125mm
Applicable Length of Label	30 mm ~ 250mm
Applicable Thickness of Label	0.03 mm ~0.13 mm
Applicable Internal Diameter of Paper Tube	5” ~10” adjust it at will
Dimension (L×W×H) (mm)	3200×1200×2070
